Key Specifications

Maximum height: 4.0-8.0m

Application Fields:  industries of wood briquette fuel, charcoal machinery, wood flour fuel sawdust briquette and husbandry.

Minerals Processed

Applicable Materials: wood flour, wood shavings and saw dust

  • straw
  • wood flour
  • wood shavings
  • corn straw

Get the Latest Discount

If you want to buy the product, contact us immediately, product prices will have a greater discount!

Overview

Introduction

The sawdust dryer, refers to sawdust drying machine or sawdust rotary dryer, means to continuously feed wet sawdust powder into dry tubes with screw conveyor. Evaporate wet material moisture in the transmission and spread of high-speed hot air flow, getting dry powdered or granular product. Sawdust dryer is mainly composed of air heater, air feeder, air drying tube, cyclone separator, blower and other components.

Sawdust

Air-flowing type sawdust dryer machine is applied to charcoal briquettes fuel, straw and sawdust briquetting machinery, wood pellets fuels, agricultural engineering and other industries, such as the drying of maize stalk, soybean stalk, cotton straw, wheat straw, sorghum stalk, wood, wood shavings and sawdust, mulberry leaf and agricultural cellulosic materials.

Sawdust Dryer

Sawdust Dryer

Sawdust Dryer

Principle

1. High drying strength, as the material is highly dispersed in the air, total surface area of particle is effective area.
2. Short drying time.
3. Simple structure, covering a small area, easy to construct and maintain.
4. Large capacity, high thermal efficiency.

Sawdust Dryer

Features

Sawdust Dryer

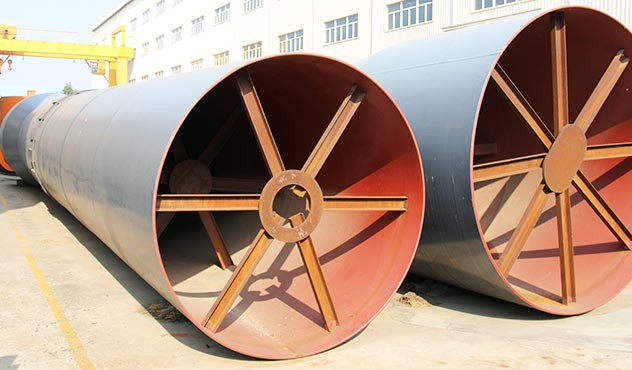

Sawdust dryer structure includes heating furnace, and feeding mouth, rotating tube, filter tube, material transmission tube, cooling tube and discharge mouth. Sawdust can be fully dried in rotating tube, and sawdust will be fully dispersed before going into material transmission tube, making water evaporation fast, and the block can block impurities in sawdust to guarantee the quality of sawdust in the material transmission tube. Wood chips entering the sawdust dryer, and the material boiling in the cylinder of sawdust dryer, hot air fully contact with the material to complete the drying process.

Sawdust Dryer

Technology Data

Spec./m
(Dia.×Length)
Shell Cubage
(m³)
Capacity
(t/h)
Installation
Obliquity
(%)
Highest Inlet
Air Temperature
(℃)
Main Motor
(kw)
Weight
(t)
Φ1.2×8.0
9.0
1.9~2.4
3~5
700~800
7.5
9
Φ1.2×10
11.3
2.4~3.0
3~5
700~800
7.5
11
Φ1.5×12
21.2
4.5~5.7
3~5
700~800
15
18.5
Φ1.5×14
24.7
5.3~6.6
3~5
700~800
15
19.7
Φ1.5×15
26.5
5.7~7.1
3~5
700~800
15
20.5
Φ1.8×12
30.5
6.5~8.1
3~5
700~800
18.5
21.5
Φ1.8×14
35.6
7.6~9.5
3~5
700~800
18.5
23
Φ2.2×12
45.6
9.7~12.2
3~5
700~800
22
33.5
Φ2.2×14
53.2
11.4~14.2
3~5
700~800
22
36
Φ2.2×16
60.8
13.0~16.2
3~5
700~800
22
38
Φ2.4×14
63.3
13.5~16.9
3~5

700~800
37
45
Φ2.4×18
81.4
17.4~21.7
3~5
700~800
37
49
Φ2.4×20
90.4
19.3~24.1
3~5
700~800
45
54
Φ2.4×22
99.5
21.2~26.5
3~5
700~800
45
58
Φ2.6×24
127.4
27.2~34.0
3~5
700~800
55
73
Φ3.0×20
141.3
30.1~37.7
3~5
700~800
75
85
Φ3.0×25
176.6
37.7~47.1
3~5
700~800
75
95
Φ3.2×25
201
42.9~53.6
3~5
700~800
90
110
Φ3.6×28
285
60.8~76.0
3~5
700~800
160
135

Technical parameters of indirect heat dryer:

  Shell
diameter
×shell
Length
Items
Inside
diameter
of outer
shell
(mm)
Inside
diameter
of inner
shell
(mm)
Shell
 Length
(m)
Shell
 cubage
(m³)
Shell
obliquity
Lifting
blade
 form
Highest
inlet air
 temperature
(℃)
Dimensions
(m)
Φ1.5×15m 1500 500 15 20.27 3-5% Lifting form 850 16.2×2.7×2.7
Φ1.5×17m 17 22.97 18.2×2.7×2.7
Φ1.5×19m 19 25.68 20.0×2.9×2.9
Φ1.8×21m 1800 650 21 35.91 3-5% Lifting form 850 22.5×2.7×2.7
Φ1.8×23m 23 39.33 24.5×2.9×2.9
Φ1.8×25m 25 42.75 26.5×2.9×2.9
Φ2.2×21m 2200 800 21 58.10 3-5% Lifting form 850 ----
Φ2.2×23m 23 63.61
Φ2.2×25m 25 69.15
